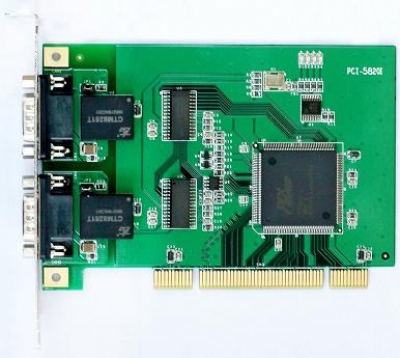

CAN PCI Card

One or 2 Channel Isolated CAN Bus PCI Interface Cards

  • Introduction:

The PCI-CAN card is a Controller Area Network (CAN) interface card. It supports one or dual-port CAN's interface that can run independently or bridged at the same time. The built-in CAN controller of this card is Philips SJA1000, which provides bus arbitration and error detection with auto correction and re-transmission function.

  • Features of Our CAN PCI Card:


Passive CAN Interface for PCI slots
One, two CAN channels with Controller NXP SJA1000
Baud rates up to 1MBaud, 82C251 Transceiver
CAN is connected via a 9-pin SUB-D as defined by the CiA DS102-1 standard
CAN 2.0A (11-bit ID standard frames) and 2.0B (29-bit ID extended frames)
Development kits for Windows 2000/XP/Vista
Examples of Visual Basic 6.0, Visual C++ 6.0, C++builder 6.0, Delphi7.0, Labview are available
Max data flow 3000 fps (extend frame)
Operating temperature: -25 to +85C

  • Application of Our CAN PCI Card:

CAN-bus product development, CAN-bus data analyzer, CAN-bus master/slave network, CAN-bus Teaching applications,CAN-bus gateway/bridge,CAN-bus industrial control & automation,Smart building system, Data transfer between different CAN-bus networks.

Example Topology Figure:

Ordering Information:

Model number

CAN Channel

Work temperature

Description

BUE-CAN-PCI-5810I One Channel CAN-PCI Card

1

-25℃~+85℃

Industrial PCI to 1 CAN

BUE-CAN-PCI-5820I 2 Channels CAN-PCI Card

2

-25℃~+85℃

Industrial PCI to 2 CAN

BUE-CAN-PCI-6810I One Channel CAN-PCI Card

1

0℃~+70℃

Intelligent PCI to 1 CAN

BUE-CAN-PCI-6820I 2 Channels CAN-PCI Card

2

0℃~+70℃

Intelligent PCI to 2 CAN
