Industrial USB

Industrial USB to RS232 Converter

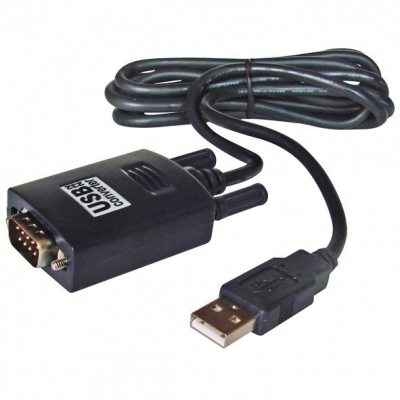

Industrial USB TO RS232 Converter(BUE-232-USB)

Industrial Level USB TO RS232, FTDI chips

Overview

Connect USB Series product to your computer,you don’t even have to power-down.

and then connect your serial devices directly to the UR001. And you’ve done this without prog

ramming, without opening up your PC, without even thinking about IRQs.



USB Series products are compliant with USB 1.1 specifications, are compatible with USB 2.0, and meet the 12 Mbps full speed requirement.



More and more peripherals are connected by the USB interface. Today’s solution is to connect all devices using the open standard USB.Now UR001 series product provides a simple, inexpensive, and reliable way to make this connection.

Product Features

1、 Uses the main ftdi chip:FT232BL or FT232RL

2、Fully compatible with USB (UniversalSerial Bus) VER: 2.0

3、Support for RS-232 interface

4、The standard DB9 serial needle

5、Serial transmission speed up to 1Mbps

6、Support automatic handshake agreement

7、Support remote wake-up and power management

8、With USB Direct power supply, do not need additional power supply

9、Wires: 1.5 meters long, with magnetic ring filtering, anti-interference, with

shielding function, 64-pin.

10、The ASIC chip can support USB port to the serial port communication.

11、Transmission distance: 5m

12、Supports Windows 98/ME/2000/XP,WIN7,VISTA, Linux(Included in kernel 2.4.20 or greater),Mac OS-X MAC OS-8/9,Windows CE.NET (Version 4.2 or greater)

13、Virtual COM Port (VCP) & D2XX (D2xx drivers allow direct access to the USB device through DLL access) Driver support

14、uilt-in 15 KV ESD Surge Protection

Product Specifications

USB

Compliant with USB 1.1, 1.0 ;USB 2.0 backwards compatible

Connector USB type A

Speed      Full speed 12 Mbps

Serial

No. of Ports          1/2/4/8

Connector            DB9 Male

FIFO                      384 Byte Rx buffer/128 Byte Tx buffer for high data throughput

Serial line protection

a).15 KV ESD for all signals

b).Optical-Isolation Protection -Superior CMR-10 kV/µs, Double working voltage-480V RMSc).Transient Voltage Suppressors -600W Peak Pulse Power capability at1.0 ms.



Serial Communication Parameters

Parity                     None,Even,Odd

Data bits                  7,8

Stop bit                   1,2

Flow Control           RTS/CTS,Xon/Xoff,None

Speed                    300-1Mbps(RS232)



Power Input      5VDC(BUS power  Ext. PWR: 5VDC 1000mA
