USB to RS485/422 Adapter

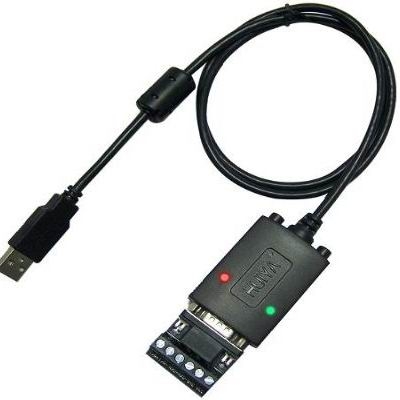

USB to RS485/422 Adapter(BUE-485-USB)

Industrial Level USB TO RS-485/422, FTDI chips,
Anti-static, 600W lightning protection
1.Summary
In order to carry through remote digital communication between computers with various standard series interfaces converter facilities or intelligent instruments, it needs inter exchange of standard series interface converter of compatible USB and RS-485 standard is able to convert mono-end USB signal to balance difference RS-485 signal and extend the communication distance to 1.2km. No external power but adopts a particular USB charge pump to drive the system, and gains electricity without initializing the USB series interface. An internal zero delay auto transceiver and particular I/O circuit automatically control the data streamdirection in stead of an handshake signal (for example RTS,DTR etc).There by in guarantees the function under RS-485 without changing the program compiled under RS-485 half-duplex mode and assures the adaptation to current operation software and interface hardware.
The transmission rate of 300-921.6kbps. Is capable of applying between host computers,host computer and is extensions or external equipment and forms dot to dot, dot to dots remote and multi-communication network, It implements multi-machine response communica tion and commonly used in systems of industrial automation control all-one-card. Door safe, car parking, ATM, bus charge, eatery sell out, staff attendance management, and toll highway etc.

2.Capabilities parameter
Interface feature: USB Ver1.1 2.0,RS-485 standard interface compatible with EIA,TIA
Electric interface: USBAconnector, RS-485 end DB9 needle connector, with connection pole
Working mode: asynchronismhalf-duplex difference transmission
Transmissionmedia: twisted -pair or STP
Transmission rate: 300-921.6KBPS
External discharge dimension: 55mmX36mmX18mm
Working circumstance : - 25 to 70 degree C, relative humidity 5% to 95%
Transmission distance: 1,200mm(RS-485 end),5m(RS-232 end)

3. Connector an signal
RS-485 data output & connector and bay-line distribution

4.Hardware installation & application
The product exterior adopts USB to DB-9 all-purpose transit plugs, output plug carries ordinary connection pole, can use TP or STP and easy connection and disassembly, T/R+T/R- stands for dispatching A+B-,VCC stands for standby power input, GND stands for public ground wire, Dot to dot, dot to dots, halfduplex communication need 2 connection (T/R+T/R-),connection
principle is T/R+ connects to opposite T/R+T/R- connects to opposite T/R-,RS-485 half-duplex mode connection is to connect T/R+ to opposite A+and T/R-to opposite B-. Remark:A+for(485+),B- for (485-)
UR485 interface supports 2 communication modes as below
1.Dot to dot 2 wires half-duplex
2.Dot to dots 2 wires half-duplex
When converter works under half-duplex connection, it needs to install a matching resistance (data 120 ohm1/4W) for preventing signal reflection and interference.

5. Communication sketch map
USB to RS-485 conversion
RS-485 dot to dot 2 wires half-duplex
RS-485 dot to dots 2 wires half-duplex
UR485 half-duplex communication connect between interface converter

6. Problemand resolution
1data communication failure
A. Check if RS-232 interface connection is correct
B. Check if RS-232 output connection is correct
C. Check if connection ends are well connected
2data loss or mistake
A. Check if data rate and format is consistent on both communication end.
