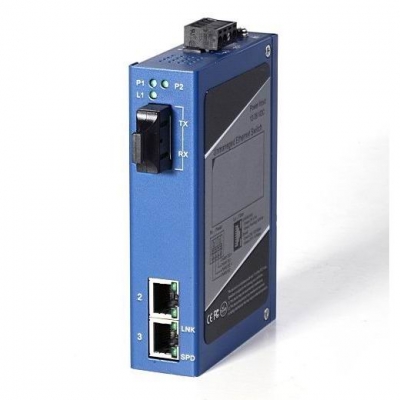

Ethernet Fiber Optic Converter

Ethernet Multi-drop Self-healing Ring Fiber Optic Converter

Industrial Sef-healing Ring Media Converter(10/100M)

Model Number: HFD-FO-100M

The HFD Series 10/100M Auto-Sensing Ethernet Fiber Optic Converter is designed using advanced Multi-dro Bus Self-healing Ring fiber optic technology. This series transmit and receive 10/100 Mbps (no adjustment is required) data over two single-mode optical fibers, extending the Ethernet transmission distance from its normal few hundred meters to 0-120 kilometers. By using optical fiber as transmission media, this series continue to perform its secured, high-speed and long-distance communication even under the adverse condition such as lighting, power surge and electromagnetic interference; Substantial saving on lighting and power surge protection equipments if copper wires were used.

The HFD Series Industrial media converter is fully assembled using SMT components for stability and reliability.

ETHERNET

Supporting standards

IEEE802.3 10Base-T, 100Base-T

Data Rate

10/100Mbps auto-sensing, Full Duplex or Half Duplex

Physical Interface

RJ45, DCE interface

OPTICAL

Number of Fibers

2 OR 4

Wavelength

SM:1310nm, MM:850nm

Fiber Type

9/125μ m(SM)

Distance

0 ~ 25km, 0~40km, 0~60km, 0-80km

Connector Type

ST/FC/SC

GENERAL

Operating Temperature

-40 ~ 70C / -40 ~ +158F

Relative Humidity

0 ~ 95% non-condensing

Mean Time Between Failure (MTBF)

> 600, 000hrs

Power Supply Adaptors

AC 220V 110v or DC+110V, +5V, +12V, +24V, +48V Option

Enclosure Color

Blue

Dimensions ( H× W× D )

DIN Rail 120*30*88mm

Case Topology

Odering Information:

Model Number

Description

Fiber No.

Fiber Mode

Fiber Connector

HFD-FO-100M-R2M

Self-healing Ring Link,Single Fiber(BI-DI), 2km

2

Multi Mode

ST/SC/FC

HFD-FO-100M-R4M

Self-healing Ring Link,Dual Fiber, 2km

4

Multi Mode

ST/SC/FC

HFD-FO-100M-R2S

Self-healing Ring Link,Single Fiber(BI-DI), 20km

2

Single Mode

ST/SC/FC

HFD-FO-100M-R4S

Self-healing Ring Link,Dual Fiber, 20km

4

Single Mode

ST/SC/FC
