Profibus Fiber Optic Hub

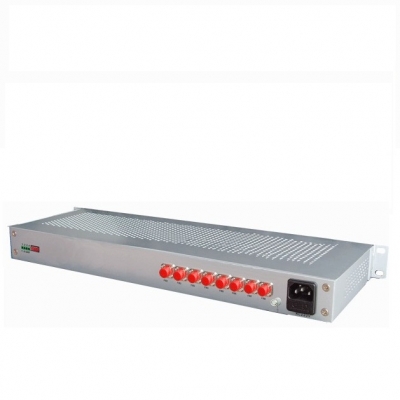

Profibus Fiber Optic Hub(BUE-HUB-PROFO)

The star network fiber optic hub is used to star fiber optic network ,transmit profibus to 16 ways fiber optic star network at a high rate and protracting the distance of communications and resisting the disturbing.The dependability,security and secret of the communications is much better.



Profiubs communication

Support cascade function ,can enlarge to n(2-16)ports or more

unique serial port protection electrocircuit, support hot_swap

Built _in intelligent module

600w/ms Lightning protection ,15kv static protection

Transparent transfer, baud rate adaptive , no need change protocol

Baud Rate 0-1.5Mbps

Connector Type Terminal

OpticPort SC、ST、FC can choose

Transfer Distance Multimode: 5 km

singlemode:20km

Suitable Fiber Multimode 62.5/125μm or 50/125μm,singlemode9/125μm

Sensibility ≥-10dBm,≤-32dBm

Error Rate ≤10-9

Net Topology Star net

Working voltage AC/DC 220/110V,24V,12V

Working Current <400mA

Size  340mm(L) X 170mm(W) x 44mm(H)

Working Temperature -40℃~85℃

Humility 0~95%

Wave length Singlemode(-S): 1310nm/1550nm

multimode (-P): 850 nm/1310nm
