Substation Gateway with Multi outputs.

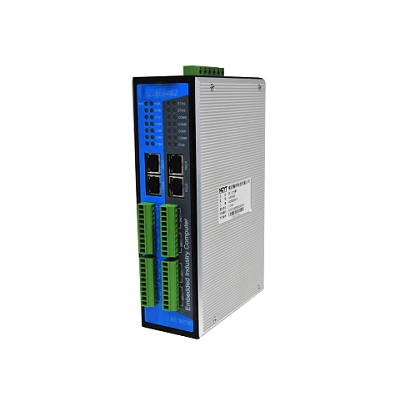

BUE-SRTU Substation Gateway Computer acquires the data from the inverter,power meter,weather station,DC cabinet,tracking axis,switch cabinet,header box,box transformer substation,etc.These data is transmitted by the inner ethernet module to the PC and it can be simultaneously transmitted by the GPRS or WIFI to the remote data center.
- Product feature:
High compatibility:
Can be connected to the SCADA system,the data protocol can be Modbus RTU/TCP,IEC60870-101/102/103/104CDT,OPC,DNP3,IEC61850-8-1,NTP/SNTP and other substation communication protocols.The protocols can communicate with each other.
- Intelligent:
New surveillance topology.
Serial,header box,inverter alarm
Efficiency analysis & user defined management function
- Characteristics:
Special for power substations
User defined parameter
Multi-terminal data transmission
- Technical parameters:
Feature:
400Mhz Freescale MPC8308 CPU
128M DDR2 Memory
128M Nand Flash
4 Ethernet Ports
8 RS-232/485 Isolation Serial Ports
DIN-Rail Mount
- Others:
System |
|
CPU |
Freescale MPC8308 PowerPC CPU,400MHz |
Memory |
DDR2 128M |
Flash |
8M Nor Flash |
128M Nand Flash |
|
Operating System |
Linux 2.6.29.6 |
LED |
|
|
System:Power x1,RUN x1, LAN:10/100/1000M x4(Link x2 Act x2) LAN:10/100M x4(Link x2 Act x2) Serial:TxD x8,RxD x8 |
Others |
RTC,Buzzer,Watchdog Timer,Reset button,Console Port x1 |
Serial Communication |
|
Console Port |
Console Port RJ45 connector x1 RS232 115200bps N,8,1 |
Serial Port |
8 xRS-232/485 TB Interface connector software-selectable RS-232 Signals:TxD,RxD,GND RS-485 Signals:485A(Data+),485B(Data-) |
Protection |
Built-in 15KV ESD protection for all signals, 2KV iCoupler digital isolation protection |
Network Communication |
|
LAN |
Auto-sensing 10/100/1000Mbps x 2, RJ45 Auto-sensing 10/100Mbps x 2, RJ45 Build-in 1.5KV magnetic isolation protection |
Power Requirements |
|
Power Input |
Dual Power Input Design PWR1:9-48VDC or 9-48VAC PWR2:9-48VDC or 9-48VAC |
Lost power alarm |
Relay empty node |
Power Consumption |
|
|
8W@12VDC |
Mechanical |
|
Dimensions |
200(L)x121.01(W)x54.1(H) |
Installation |
DIN-Rail Mount |
Environmental |
|
Operating Temperature |
-20-60℃ |
Storage Temperature |
-30-80℃ |
Regulatory Approvals and Warranty |
|
EMC |
GB/T 17626.2-2006 Class 4 GB/T 17626.4-2008 Class 4 GB/T 17626.5-2008 Class 4 GB/T 17626.6-2008 Class 3 |
Warranty |
5 Years |
