CAN Bus Optical Converter(Newly Released)
Product Description:

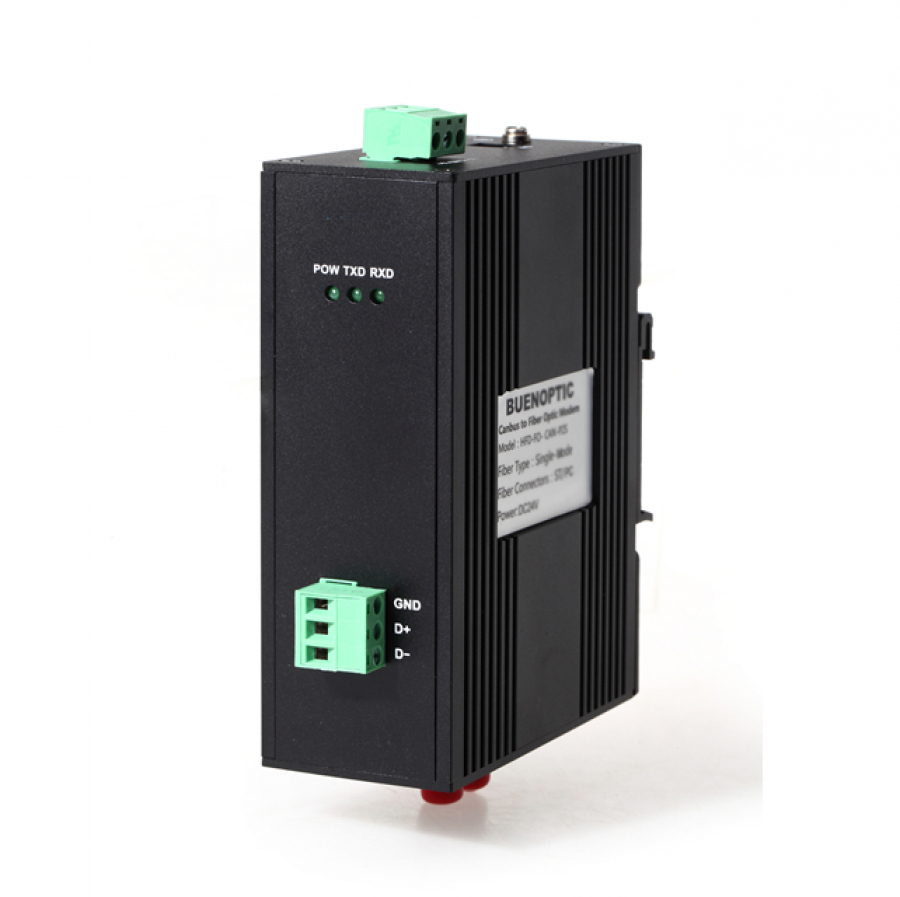

The BE-CAN-FO CAN to single mode and CAN to multi mode optical Converter support all the transmission speeds (transmission rates):0-1Mbps. The BE-CAN-FO-P2S & BE-CAN-FO-P2M is a repeater used to establish a connection between two CAN bus systems via single mode or multi mode fiber optic transmission medium. The BE-CAN-FO series is specially designed for converting the electrical CAN bus signal to fiber optic communication for transmission over single mode fiber optic cables.The setting or adjustment is dependent on the transmission rate. The BE-CAN-FO optical converter is developed out based on the growing market demand for CAN Bus long distance transmission without any cascading(attenuation).The transmission distance limitation of the CAN bus system will NOT be affected by different CAN baud rates. The total CAN bus communication distance can be extended over fiber optic cables. Bus errors on one CAN network will not affect the operation of another CAN network. The BE-CAN-FO-P2S & BE-CAN-FO-P2M is applied with the most advanced technology and CPU in the world,which is the foundation of the high rate transmission(1MB) over more than 20km without any cascading or delay.Thanks to the advanced technology and high performance,the BE-CAN-FO to Fiber Converters have been used in very important projects in the world.
Product Feature & Benefits:
- Buffering function:The BE-CAN-FO CAN Bus Fiber Optic Converter can protect the data from being lost.The isolation inside the optical converter can ensure the converters work normally under harsh environments.Anti-stream function,Buffering: 1000 frames.
- No cascading: The BE-CAN-FO has no cascading,no frame loss when data is at high rate or long distance transmission, the distance is NOT limited by the increased baud rate.
- Reliability: Compared with other brands,the BE-CAN-FO can help build up more stable and secure networks,it can maximumly reach 6500 frames/S.
- Buffer clearance: Clear the buffer in nominated time(For Option)
- High rate: Up to 1Mbps(SM;20km, MM:2km)
Applications:
- Control Systems
- Building Automation
- Factory Automation
- Distributed Data Acquisition
- Fire Panels
- Power Automation
- Military
- Industrial Automation
- Battery Control
- Filming industry
Other Specs:
Technical Data |
|
Voltage/power supply |
9 to 30V DC |
Operating voltage |
9 V to 30 V DC, typ. 24 V, |
Current consumption |
typ. 80 mA@24V |
Output voltage/current (Pin 6 Sub-D socket) |
5 V +5%,–10%/ 90 mA |
Signaling contact Signal transmission |
Max .switch DC24V@2A or This email address is being protected from spambots. You need JavaScript enabled to view it. |
Transmission rate |
0-1Mbps |
Setting transmission rate |
Rotary button or software |
Bit error rate |
< 10-9 |
Electrical port |
Terminal or DB9 |
Standard |
ISO-11898, CAN1.0 ,CAN2.0 , Device Net |
Optical ports |
1 or 2 (2 as standard) |
Wavelength |
MM:850/1310nm, SM:1310/1550nm |
optical power:– in glass fiber 9/125um – in glass fiber G 62.5/125 |
-9dBm – -18 dBm -13 dBm – -20 dBm |
Receiver sensitivity |
-34dBm |
Transmission distance:with glass fiber 9/125um with glass fiber G 62,5/125 |
0 – 20,000 m (0.3 dB/km) 0 – 3,000 m (2.0 dB/km) |
Connector |
ST/FC/SC |
Others |
|
Ambient temperature |
-30 °C to +70 °C |
Storage temperature |
–40 °C to +85 °C |
Relative humidity |
<95 %, non-condensing |
Protection class |
IP 30 |
Dimensions (W x H x D) |
86 x 29 x 155mm(W*D*H) |
Housing material/Color |
Die-cast zinc/Black |
Weight |
approx. 600 g |
Electromagnetic compatibility (EMC)
Limit class B (EN 55022)
EN 61000-4-2
EN 61000-4-3)
Burst: On power supply lines and shielded RS 485 bus lines: ±2 kV (EN 61000-4-4)
Surge: Power lines: ±1 kV symmetrical,Shielded RS 485 lines: ±2 kV asymmetrical (EN 61000-4-5)
Ordering Information:
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
BE-CAN-FO-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
BE-CAN-FO-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
BE-CAN-FO-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
BE-CAN-FO-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
