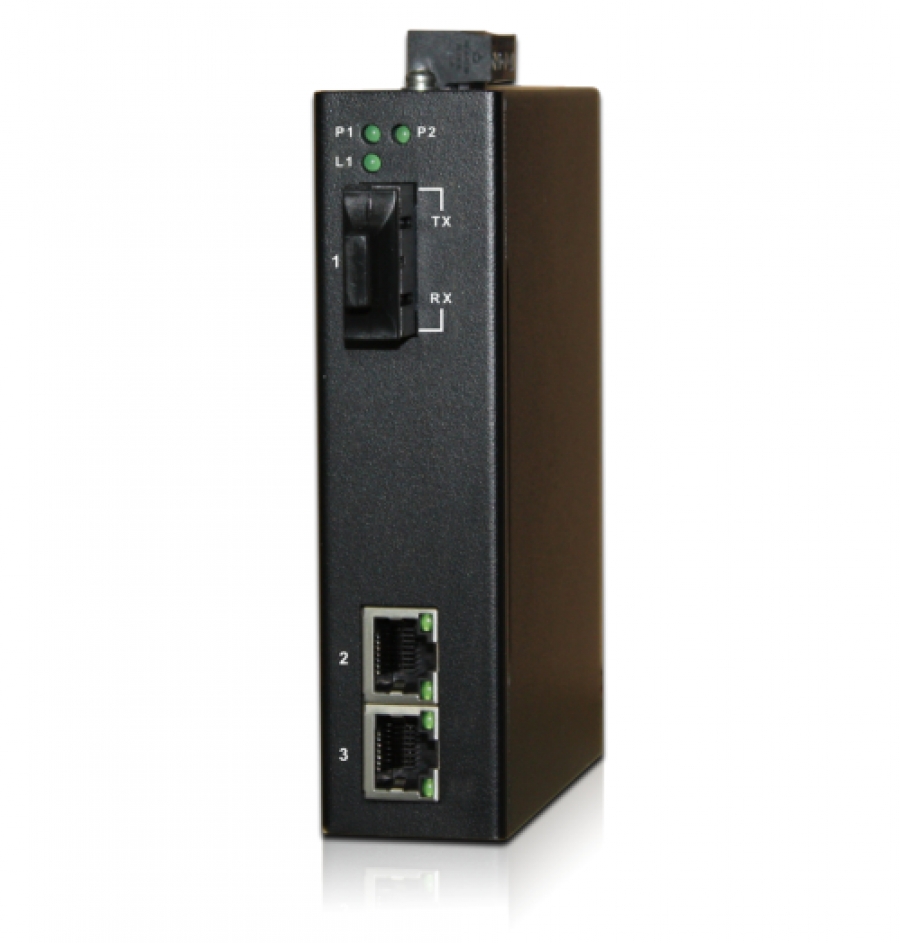

Gigabit(10/100/1000M) Industrial Media Converter New!

ETHERNET

Supporting standards

IEEE802.3 10Base-T, 100Base-T, 1000Base-T

Data Rate

10/100/1000Mbps auto-sensing, Full Duplex or Half Duplex

Physical Interface

RJ45, DCE interface, 2 ports

OPTICAL

Number of Fibers

2 or 1

Wavelength

SM:1310/1550nm MM: 850/1310nm

Fiber Type

9/125μm(SM) ,62.5/125μm(MM)

Distance

0 ~ 20km(SM),0~2km(MM) Option: 40/60/80/120km

Connector Type

ST/FC/SC

GENERAL

Operating Temperature

-40 ~ 70˚C / -40 ~ +158ºF

Relative Humidity

0 ~ 95% non-condensing

Mean Time Between Failure (MTBF)

> 600,000hrs

Power Supply Adaptors

12~36V DC(Dual redundant power supplies)

or 85~264VAC/77~300VDC(Single power supply)

Enclosure Color

Black

Dimensions ( W x H x D) mm

30x 125 x 88mm

IP Grade

IP40

Power Consumption

≤ 3W

Power Supply Protection

Reverse connection, Overload

Mount Way

DIN Rail

Warranty

2 to 5 Years

IEEE STANDARD

IEEE 802.3

10BaseT Ethernet

IEEE 802.3u

100BaseT(X) and 100BaseFX Fast Ethernet

IEEE 802.3ab

1000BaseT(X) Ethernet

IEEE 802.3z

1000BaseX Ethernet

IEEE 802.3x

Flow Control

CERTIFICATE

EMC

CE, FCC

EMI

FCC Part 15. CISPR(EN55022) class A

EMS

EN61000-4-2（ESD）Level 3,

EN61000-4-3（RS）Level 3,

EN61000-4-4（EFT）Level 3,

EN61000-4-5（Surge）Level 3,

EN61000-4-6（CS）Level 3,

EN61000-4-8

Shock

IEC60068-2-27

Freefall

IEC60068-2-32

Vibration

IEC60068-2-6

Green Product

RoHS, WEEE
