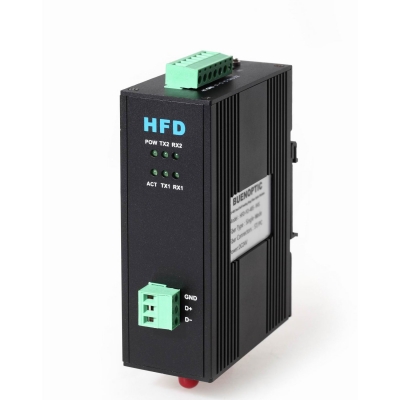

HFD-FO-485 RS-485 Multi-Drop Bus Fiber Optic converter
The RS-485 Multi-Drop Bus Fiber Optic Converter products provide an optical bus network for RS-422 or RS-485 data interfaces over a pair of multimode or singlemode optical fibers. The Terminal module units operate as the end or terminal points and provide an electrical connection and a two fibre optical connection. The Repeater module units act as in-line repeater stations and provide a single electrical connection and two optical connections, one upstream and one downstream. This series is available in either wall mount, DIN rail or 3U chassis card configurations.
Product Features
Multi protocol data interface
Switchable termination and biasing
Multimode and singlemode
DIN and 3U chassis card
Dual redundant power supply
Data | |
Data Formats | RS232,RS422,RS485 |
RS232 Data Rate | 115.2kbps |
RS422 / 485 Data Rate | 512 kbps or 1Mkbps |
Bit Error Rate | <1 x 10-12 |
Connectors | |
Data | Screw Block Terminal |
Fiber | ST, SC or FC (ST fitted as standard) |
Environmental | |
Operating Temperat ure | - 3 0 C--- +70 C |
Storage Temperature | - 40 C--- +85 C |
Operating Humidity | 0- 95% |
MTBF | >100,000 Hours |
Optical | |
Fiber | Multi mode or single mode |
Wavelength | MM: 850/1310nm, SM: 1310/1550nm |
Number of fibers | 4 or 2 |
Power | |
Power Input | AC 220V 110v or DC+110V +5V +12V +24V +48V Option |
Mechanical | |
Dimensions | DIN Rail 43*88.5*124.5mm(W*D*H) |
Ordering Information:
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
HFD-FO-485-M2M |
Multi Drop Bus Link,Dual Fiber(BI-DI), 2km |
2 |
Multi Mode |
ST/SC/FC |
HFD-FO-485-M4M |
Multi Drop Bus Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
HFD-FO-485-M2S |
Multi Drop Bus Link,Dual Fiber(BI-DI), 20km |
2 |
Single Mode |
ST/SC/FC |
HFD-FO-485-M4S |
Multi Drop Bus Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
