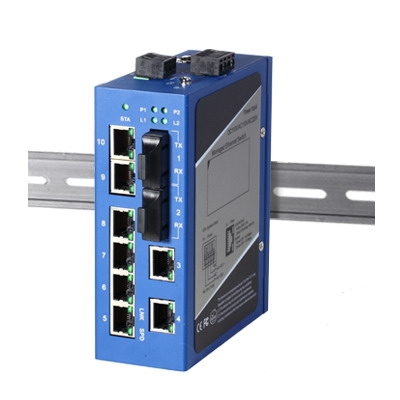

DIN-rail 10/100M Unmanaged Industrial Ethernet Switches
10/100BaseT(X), 100BaseFX(SC/ST Connectors)
Low Voltage redeundant AC/DC Power Inputs
Metal Case with IP40 Protection
Broadcasting Storm Control
Operating Temperature:-40℃~75℃
Specifications
Technology
- Network Standards:
- IEEE802.3 10Base-T
- IEEE802.3u 100BaseT(X) and 100BaseFX
- IEEE802.3x Flow Control
- Processing Type:Store and Forward
- MAC Address:8K MAC Address Table
- Broadcasting Storm Control:Automatic
- Flow Control:Full/Half Duplex Back Pressure Flow Control
Interface
- RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation
- Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode
- LED Indicators:Power, Port Status
Power Requirements
- Low Voltage Range:12~36VDC; 10~24VAC
- High Voltage Range:200~350VDC; 165~265VAC
- Connection:Standard 4 Pin Dual Power Connector
Optical Fiber
|
Mode |
Typical Dist |
Wavelength |
Cable Size |
TX Power |
Rx Sensitivity |
Transmission speed |
|
Multi |
2km |
1310nm |
62.5/125um |
-23.5~-14dBm |
< -35dBm |
10/100Mbps |
|
Single |
15km |
1310nm |
9/125um |
-15~-8dBm |
< -35dBm |
10/100Mbps |
Physical Characteristics
- Case:Slim Metal Case, IP40 Design
- Dimensions:(W×H×D):
- HFB5:30×127×80mm
- HFB8:44×130×95mm
- HFB16:70×149×130mm
- HFB24:91×149×130mm
- DIN Rail or Panel Mounting
Environment Limits
- Standard Temp Models:-10˚C to 60˚C
- Extended Temp Models:-40˚C to 75˚C
- Storage Temperature:-40 to 85℃
- Ambient Relative Humidity: 10 to 95%(Non-condensing)
Agency Approvals
- EMI:FCC Part15, CISPR(EN55022) Class A
- EMC:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
Warranty
Warranty Period:5 years
Ordering Information
|
Product Model |
Connectors |
||||
|
Standard Temperature Models(-10℃~60℃) |
Extended Temperature Models(-40℃~75℃) |
10/100BaseT(X) |
100BaseFX |
||
|
MM, SC Connectors |
SM, SC Connectors |
||||
|
HFB5 Series |
|||||
|
HFB5 |
HFB5-W |
5 |
|
|
|
|
HFB5-SC |
HFB5-SC-W |
4 |
1 |
|
|
|
HFB5-SSC |
HFB5-SSC-W |
4 |
|
1 |
|
|
HFB5-2SC |
HFB5-2SC-W |
3 |
2 |
|
|
|
HFB5-2SSC |
HFB5-2SSC-W |
3 |
|
2 |
|
|
HFB8 Series |
|||||
|
HFB8 |
HFB8-W |
8 |
|
|
|
|
HFB8-2SC |
HFB8-2SC-W |
6 |
2 |
|
|
|
HFB8-2SSC |
HFB8-2SSC-W |
6 |
|
2 |
|
|
HFB8-4SC |
HFB8-4SC-W |
4 |
4 |
|
|
|
HFB8-4SSC |
HFB8-4SSC-W |
4 |
|
4 |
|
|
HFB16 Series |
|||||
|
HFB16 |
HFB16-W |
16 |
|
|
|
|
HFB16-2SC |
HFB16-2SC-W |
14 |
2 |
|
|
|
HFB16-2SSC |
HFB16-2SSC-W |
14 |
|
2 |
|
|
HFB16-4SC |
HFB16-4SC-W |
12 |
4 |
|
|
|
HFB16-4SSC |
HFB16-4SSC-W |
12 |
|
4 |
|
|
HFB24 Series |
|||||
|
HFB24 |
HFB24-W |
24 |
|
|
|
|
HFB24-2SC |
HFB24-2SC-W |
22 |
2 |
|
|
|
HFB24-2SSC |
HFB24-2SSC-W |
22 |
|
2 |
|
|
HFB24-4SC |
HFB24-4SC-W |
20 |
4 |
|
|
|
HFB24-4SSC |
HFB24-4SSC-W |
20 |
|
4 |
|
|
HFB24-6SC |
HFB24-6SC-W |
18 |
6 |
|
|
|
HFB24-6SSC |
HFB24-6SSC-W |
18 |
|
6 |
|
- All fiber cables can be equipped with ST connectors
- Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
- The standard models are powered by 24VDC, 220VAC custom models are also available
