RS232/422/485/CAN/Profibus Hubs

CAN BUS Fiber Optic Hub

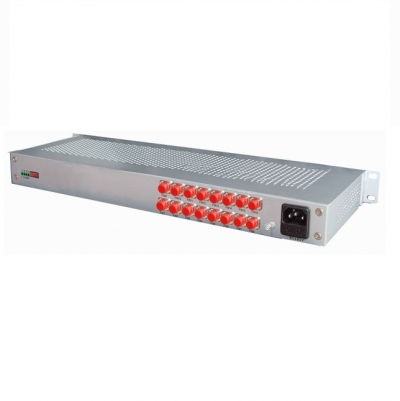

CAN BUS Fiber Optic Hub(BUE-HUB-CANFO)

The BUE-HUB-CANFO star network fiber optic hub is used to star fiber optic network ,transmit canbus to 8 ways fiber optic star network at a high rate and protracting the distance of communications and resisting the disturbing.The dependability,security and secret of the communications is much better.



Canbus1.0 ,2.0

Support cascade function ,can enlarge to n(2-16)ports or more

unique serial port protection electrocircuit, support hot_swap

Built _in intelligent module

600w/ms Lightning protection ,15kv static protection

Transparent transfer, baud rate adaptive , no need change protocol

Baud Rate: 0-1.Mbps

Connector Type: Terminal

OpticPort: SC、ST、FC can choose

Transfer Distance Multimode: 5 km

singlemode:20km

Suitable Fiber Multimode: 62.5/125μm or 50/125μm,singlemode9/125μm

Sensibility: ≥-10dBm,≤-32dBm

Error Rate: ≤10-9

Net Topology: Star net

Working voltage: AC/DC 220/110V,24V,12V

Working Current: <400mA

Size:  340mm(L) X 170mm(W) x 44mm(H)

Working Temperature: -40℃~85℃

Humility: 0~95%

Wave length Singlemode(-S): 1310nm/1550nm

multimode (-P): 850 nm/1310nm
