CAN FD Fiber optic Converter

Product Description:

A twisted pair port has an independent CAN (FD) transceiver, which can multiply the number of nodes. Therefore, while providing free wiring mode, it also cancels the limit to the maximum number of nodes driving of CAN (FD) transceiver on the system bus, One optical fiber port can make CAN-FO-FD be applied in high interference environment, especially in high-voltage occasions and power occasions. Each port also has a led indicator for detecting bus activity and bus fault, which is convenient to observe the CAN (FD) network’s working state.

The HFD-FO-FD can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FO-FD can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

 The CAN-FO-FD can be configured by connecting to PC through asynchronous serial communication interface. Configuration software is based on Windows OPS, which is easy to use and configuration can take effect immediately. After equipment configuration is completed, it can be put into operation directly.

Segment monitoring at the optical line:

Each receiver monitors the optical line port connected to it for receive frames and status. If faulty frames are received by the receiver, or no single for longer than the maximum permitted time, forwarding of the received signals is blocked until the port status is OK,frames can be received again correctly.The converter can be equipped with buffering elimination function after 300ms or when the buffer is full.

Network Topologies:

The following network topologies can be realized with the HFD-FO-FD:

• Point-to-point topologies
• Multi-drop Bus

Fiber Mode: Single mode or Multi Mode

Product Feature & Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 1-channel fiber interface (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Optical fiber connection: point to point
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.

Application:

Fire control panel, radar system, security, battery system, film, automative industry, power SCADA, Elevator, industrial automation, solar plant, Wind farm and other industrial fields.

Other Specs:

Electromagnetic compatibility (EMC)

Limit class B (EN 55022)

EN 61000-4-2

EN 61000-4-3)

Burst:     On power supply lines and shielded RS 485 bus lines: ±2 kV (EN 61000-4-4)

Surge:  Power lines: ±1 kV symmetrical,Shielded RS 485 lines: ±2 kV asymmetrical (EN 61000-4-5)

Ordering Information:

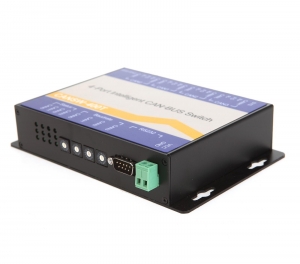

4 Port Configurable CAN FD Fiber Optic Switch(Router)

Description:

The CAN-FD-FIB-MIXED Can bus to fiber optic switch provide an optical point-to-point or bus network connection for Can FD data interfaces on one or two, multimode or single mode optical fibers. The CAN FD fiber optic switch has 2 CAN ports and 2 fiber optic ports, all 4 ports are configurable via software.Any port can communicate with other ports,so it has the functions of “Repeater”,”Router” and “Switch”, it can be used  in point to point,multi drop bus,star and tree topologies.

The CAN-FD-FIB-MIXED can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FD-FIB-MIXED can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 2-channel fiber interfaces (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)

Specifications：

Ordering Information:

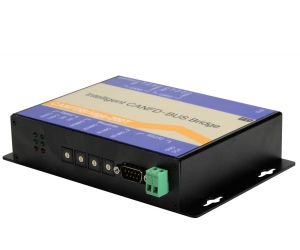

Intelligent CAN FD to CAN Converter(Bridge)

The CAN-FD-BRIDGE-200T Series CAN FD bridge utilizes automatic bidirectional switching requiring no control signal. The product can be used as CAN to CAN FD converter or CAN FD repeater.

As can (FD) intelligent bridge, CAN-FD-BRIDGE-200T supports the default conversion processing of CAN to CAN, CAN to CAN FD, CAN FD to CAN, CAN FD to CAN FD, etc. In addition, it also provides special conversion processing such as merging (several can messages forming a CAN FD message), splitting (a CAN FD message is split into several can messages), and frame mapping. Users can freely set the rules of CAN (FD) message forwarding mapping, packet Grouping and unpacking to meet their own application requirements.

Feature & Benefits:

32-bit 400m high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, is suitable for the system with strict real-time requirements.

The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.

The port uses rotary dial switch to set the baud rate of CAN FD data domain and arbitration domain. For most applications, customers do not need to use configuration software.

 The port has sending, receiving and status indication separately, which is convenient for industrial field debugging.The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) and optical hybrid switch are completely unified. Customers can switch between these products seamlessly.

The Series CAN FD bridge can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking,

Supervisory Control and Data (SCADA) and so on.

Other Specs:

• Linking two CAN nets with data buffering
• Different bit rates on the CAN nets possible
• 11-bit ID and 29-bit ID bridge
• Internal microcontroller MB90F543
• High-Speed CAN interface acc. to ISO 11898-2, 5 Mbit/s
• Electrical isolation by optocouplers and DC/DC-converters
• Configuration of the CAN-FD-Bridge module is easily done by means of a PC/terminal
• Isolation 3000Vsm
• Lightning/Surge Protection 1~2 lightning strikes
• ESD Protection 15KV

CAN FD:

• Connector Type Terminal
• Data Rate: 5Kbps~5Mbps
• Extended Distance 10Km
• Operating Temperature -40 ~ 70C / -40 ~ +158F
• Operating Humidity 0 ~ 95% non-condensing
• Mean Time Between Failure (MTBF) > 70, 000hrs
• Power Supply Input Voltage 9~40V DC
• Power Supply Output Voltage 5V DC
• Dimensions (W × D× W) 156mm× 108mm× 33.6mm

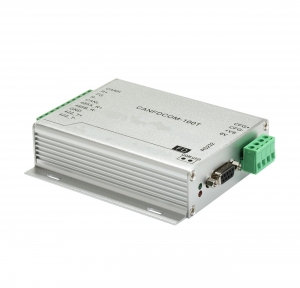

RS-232/485/422 to CAN FD Converter

CANFD-COM-100T intelligent protocol converter can quickly connect RS-232/485/422 communication equipment to CAN (FD) fieldbus. The converter supports 1200-921600bps serial port baud rate and 5k~5Mbps CAN (FD) bus communication rate. The converter supports three conversion modes: transparent conversion, transparent label conversion and format conversion. CANFD-COM-100T converter provides configuration software, which can flexibly set the operation parameters of CANFD-COM-100T.

Product Feature and Benefits:

Ordering Information:

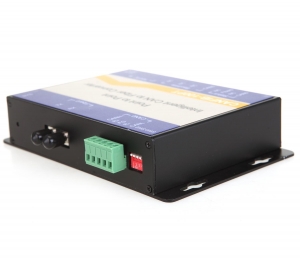

CAN FD to Fiber Optic Converter

Model: CAN-FD-FIB-100PT

Description:

A twisted pair port has an independent CAN (FD) transceiver, which can multiply the number of nodes. Therefore, while providing free wiring mode, it also cancels the limit to the maximum number of nodes driving of CAN (FD) transceiver on the system bus, One optical fiber port can make CAN-FD-FIB-100pt be applied in high interference environment, especially in high-voltage occasions and power occasions. Each port also has a led indicator for detecting bus activity and bus fault, which is convenient to observe the CAN (FD) network’s working state.

The CAN-FD-FIB-100PT can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FD-FIB-100PT can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

 The CAN-FD-FIB-100PT can be configured by connecting to PC through asynchronous serial communication interface. Configuration software is based on Windows OPS, which is easy to use and configuration can take effect immediately. After equipment configuration is completed, it can be put into operation directly.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 1-channel fiber interface (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Optical fiber connection: point to point
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)
• Industrial temperature range: - 40 ℃～ + 85 ℃

Application:

• Elevator
• Fire control panel
• Industrial automation
• Battery
• Film
• Military defence
• Power substation
• Power plants

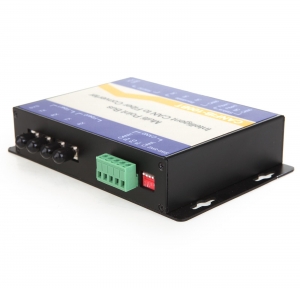

CAN FD Multi-drop Bus Fiber Optic Converter

Description:

The CAN-FD-FIB-100BT CAN bus to fiber optic switch provide an optical Multi-drop bus or star network connection for CAN bus data interfaces on one or two, multi mode or single mode optical fibers. A twisted pair port has an independent CAN (FD) transceiver, which can multiply the number of nodes. Therefore, while providing free wiring mode, it also cancels the limit to the maximum number of nodes driving of CAN (FD) transceiver on the system bus, 2 optical fiber ports can make CAN-FD-FIB-100BT be applied in high interference environment, especially in high-voltage occasions and power occasions. Each port also has a led indicator for detecting bus activity and bus fault, which is convenient to observe the CAN (FD) network’s working state.

The CAN-FD-FIB-100BT can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

 The CAN-FD-FIB-100BT can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 2-channel fiber interfaces (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Optical fiber connection: Multi-drop Bus
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)
• Industrial temperature range: - 40 ℃～+ 85 ℃
• Aluminum enclosure size: 147mm * 112mm * 36mm
• 3 years warranty

Other Specifications:

Ordering Information:
