Profibus Redundant Ring(DSHR) Fiber Optic Converter(Modem)

Redundant Ring Profibus to Fiber Optic Converter(Modem)

The Profibus Redunant Ring Multi-Drop Self-Healing Ring Transmission series products provide an optical self-healing ring network for Profibus data interfaces over two multimode or singlemode optical fibers. The system offers maximum reliability as it can recover simultaneous faults or failures in two different locations and has contact closure outputs on each module to clearly indicate any fault location. The self-healing ring consists of two opposing data paths, ring A and ring B. Under normal operation only the primary path (ring A) is used for data transfer. If a fault is detected, the data is transferred to the secondary path (ring B) without interruption to the communications network.
The series is available in wall mount, DIN rail or 3U chassis card. Redundant Dual power supply as the option.

Product Features:

Multimode and singlemode solutions
Contact closure alarm outputs per station
Single or dual fibre configurations
Wall mount, DIN rail and 3U chassis card

Typical Topology:

Other Specs:

Ordering Information:

CP5512 communication card is designed for notebook computers designed Isolated PROFIBUS/MPI/PPI/FWL industrial field bus communication cards, iCoupler isolation using magnetic coupling device to replace the optocoupler, small size, wide temperature range, RS485 port in an increase of anti-lightning and surge protection circuit since the resumption of over-current protection, Industrial application of the chips used in a wide temperature range, For the realization of notebook computers and network SIMATIC between PROFIBUS/MPI/PPI/FWL communications connection.

• • PROFIBUS DP master Class 1 including acyclic DP expansions with SOFTNET-DP
  • PROFIBUS DP master Class 2 including acyclic DP expansions with SOFTNET-DP
  • PROFIBUS DP slave with SOFTNET-DP slave
  • PG/OP communication
  • S7 communication with SOFTNET-S7
  • S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-DP or SOFTNET-S7

• • STEP 7 from V5.2
  • SOFTNET-S7 V6.1
  • SOFTNET-DP, SOFTNET-DP slave from V6.1
  • STEP 7-Micro/WIN from V3.2 SP4
  • ProTool^®, ProTool/Pro^® V6.0 SP2
  • NCM PC from V5.2
  • SIMATIC PDM V5.2 SP1

The appropriate OPC servers are included in the scope of supply of the respective communication software

CP5512 fieldbus devices to connect with the need to use special PROFIBUS cables or extension of the MPI cable (Siemens products, for: 6ES7 901-0BF00-0AA0)

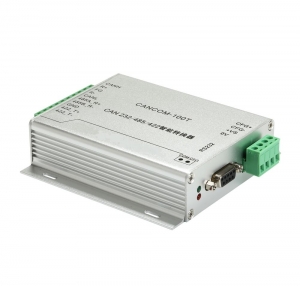

Rs-232/485/422 to CAN Bus Converter

The Rs-232/485 to CAN Bus Converter utilizes automatic bidirectional switching requiring no control signal.

High efficiency, power & signal double isolated product. It can convert RS-232/S-485 system fit with CAN Bus system. Then we can use CAN realize RS-232/485 signal to further transmission.

Support Can Bus 2.0A/B protocol
Can set the RS-232/485 and CAN Bus baud rate and communication format by software

Ordering Information:

After 2 year's efforts,Bueno R&D team successfully worked our new CAN BUS Fiber Converter without Cascading.It has been put into American market and the market response is well enough. The product Feature is as the below:

Outstanding features: CAN high-speed transmission to solve the distance limitations
bus architecture: all of the other bus, multi-multipoint communication, support burst data transfer
flow control: negative frame-based flow control algorithm (FRR), an agreement to achieve CGNTP
network: star, chain, double fiber ring, point to point, cascade up to 200 stations
Transmission delay: the delay of light to the light minimum 200ns, up to 8.7us
solution Ring mode: LisRing proprietary ring technology solutions, auto-negotiation to generate the root node without any configuration
solution Ring speed: up to 1ms time of self-healing ring network, fiber optic connection can automatically restore
bus interface: 5-line European-style terminals, there are optional 120 ohm termination resistor can be used to connect terminals
Transmission type: protocol type, CAN frame transmission, bridge conversion
Frame Type: Support CAN2.0A, CAN2.0B
support rate: See behindŸ schedule
rate settings: DIP switch
Forwarding mode: store forward
storage depth: 160 transmitter buffer

optical form: ST, FC or SC connector can be customized forms
light power:>-13dbm (single-mode system),>-20dbm (multimode systems)
received light sensitivity: <-28dbm (single-mode system), <-34dbm (multimode systems)
Distance: Single mode, 0km ~ 20km; multimode, 0km ~ 3km
Input Power: DC9V-DC30V, <2W; DC24V @ 80mA typical no-load continuous
LED Status: optical line, dataŸ port, operation instructions, etc.
Alarm output: Relay interfaces,Ÿ 24V @ 1A, This email address is being protected from spambots. You need JavaScript enabled to view it.
chassis structure: D35mm rail,Ÿ 40x 110 x 74 (mm)
Ÿ chassis technology: metal casting; Protection class: IP40
Ÿ vibration characteristics: compliance with IEC68-2-6
Ÿ Weight: about 500g
temperature and humidityŸ characteristics: temperature, -25 ℃ ~ +75 ℃; Humidity: 95% non-condensing;
Storage Temperature: -45 ℃ ~Ÿ +85 ℃
standard: CAN StandardŸ
EMC: EN61000-4-2 (8KV staticŸ case)
EN61000-4-3, ENV50204 (EMI 10V / m at 10KHz-1GHz)
EN61000-4-4 (2KV quick burst)
EN61000-4-5 (common mode 1KV, 2KV surge differential mode)
EN55022 (emission to class B)
